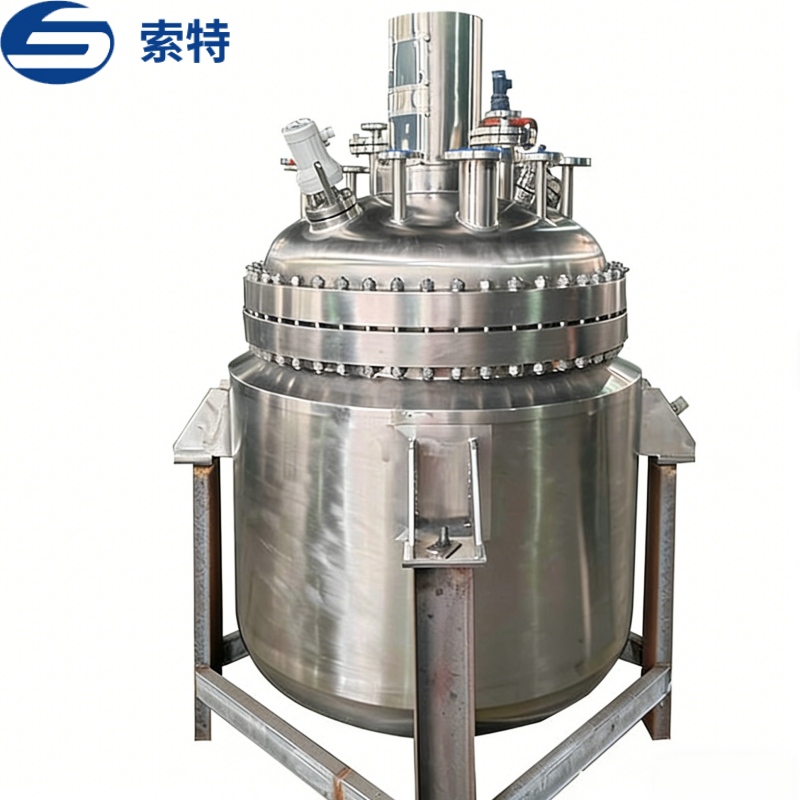

High-Performance Reactor Vessel – Built for Safety, Efficiency, and Reliability
DATE：2026-03-30
In chemical, pharmaceutical, food, and advanced materials industries, the reactor vessel is the core of production. It provides a sealed, controllable environment for reactions and processes, directly influencing product quality, safety, and efficiency.
Our reactors are engineered and manufactured to meet international standards, with a focus on robust construction, long-term stability, and adaptability to diverse process conditions.
Key Features
• High-quality materials
Available in 304/316L stainless steel, carbon steel, titanium alloy, and composite materials.
For food and pharmaceutical applications, food-grade and pharmaceutical-grade stainless steel is used.
For corrosive environments, options include PTFE lining, glass lining, and special alloys.
• Precision fabrication
Laser/plasma cutting ensures accurate dimensions.
Heads are formed by cold stamping or hot spinning for uniform wall thickness.
Cylinders are rolled and assembled with strict control of roundness and straightness.
• Advanced welding and inspection
Welded by certified welders using TIG, MIG, and submerged arc welding.
Full NDT inspections: PT, UT, and RT as required.
Post-weld heat treatment and stress relief for improved durability.
• Efficient heating/cooling systems
Jacket options: half-pipe, dimple jacket, or conventional jacket.
Internal coils available for enhanced heat transfer.
Compatible with steam, heat transfer oil, and water circulation.
• Versatile agitation and sealing
Multiple impeller types: anchor, paddle, turbine, frame, and helical ribbon.
Variable-frequency drives for precise speed control.
Sealing options: mechanical seal, packing seal, and magnetic drive for zero-leakage performance.
• Rigorous testing before delivery
Hydrostatic test at 1.25–1.5× design pressure.
Pneumatic test using nitrogen or clean dry air.
Full calibration of temperature, pressure, and speed control systems.
Complete documentation: material certificates, test reports, and operation manuals.
Applications
• Pharmaceutical & fine chemicals
Hydrogenation, condensation, hydrolysis, nitration, and other reactions.
Designed for GMP-compliant production environments.
• Food & beverage
Mixing, emulsification, extraction, fermentation, and sterilization.
Hygienic design with easy cleaning and sanitization.
• Advanced materials
Nanomaterials, polymers, composites, and new energy materials.
Suitable for high-temperature, high-pressure, and vacuum processes.
• Petrochemical & water treatment
Mixing, reaction, and degradation processes in corrosive and demanding environments.
Why Choose Us
• Custom engineering
We provide full design and manufacturing based on your process parameters, capacity, and operating conditions.
• One-stop service
From design and fabrication to installation, commissioning, and after-sales support.
• Reliable quality control
Strict material traceability and inspection records throughout production.
If you would like a quotation or technical proposal, please send your requirements (volume, design pressure/temperature, materials, heating/cooling method, agitation type, and any special process conditions). We will respond with a detailed solution within 24 hours.
